SaphyRAD C

The SaphyRAD C has a robust housing with 6 large buttons designed for use with gloves. This device is adapted to meet the needs of the Nuclear industry, but also of the NORM industry, first responders & medical structures.

SaphyRAD C is designed for the detection & measurement of Alpha and/or Beta radiation sources with the use of external connected measuring probes. It has a wide dose rate range from 0.05 μGy/h to 10Gy/h.
It is also compatible with external analog probes of other systems.

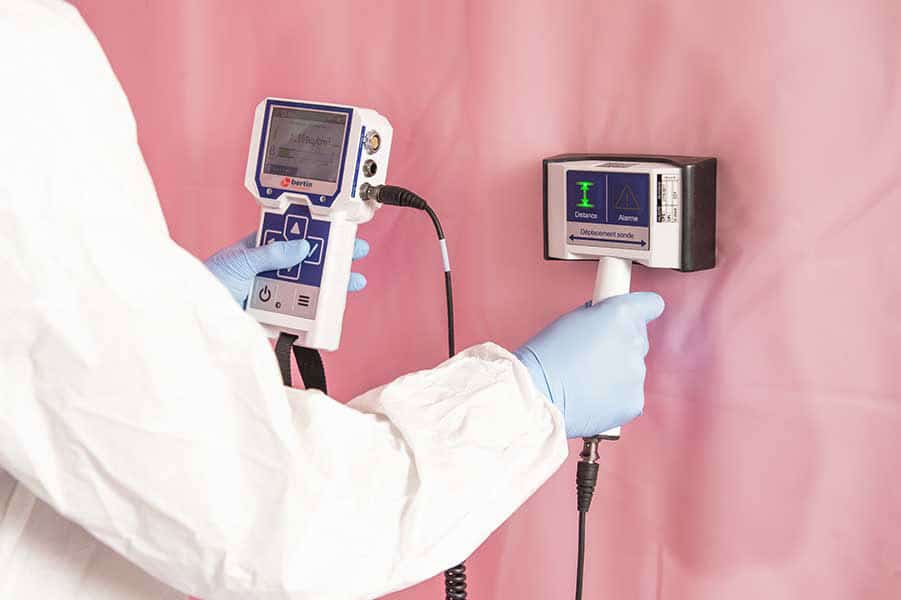

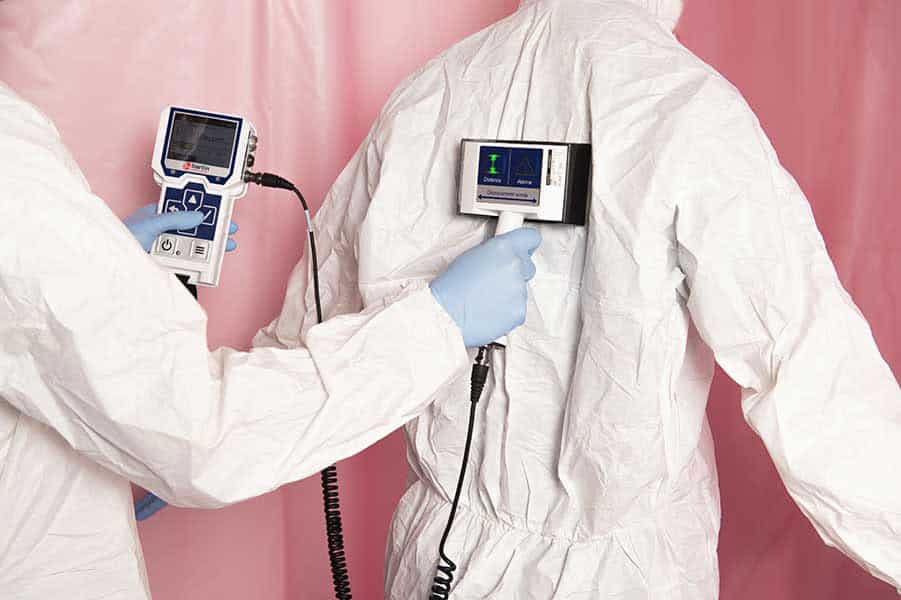

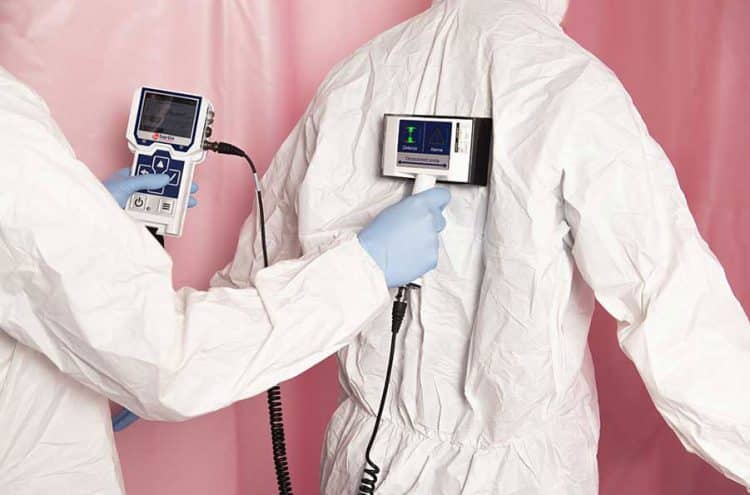

SaphyRAD C is an ergonomic handheld device with a high image quality color screen. Some probes also include an embedded alarm & a distance control indicator.

SaphyRAD C works with a specific algorithm which was developed for a very fast and reactive detection of radiation sources.

The SaphyRAD was initially developed for EDF, global leader in low-carbon energy. Its ergonomic design meets the requirements of the Nuclear Industry providing a versatile and ergonomic device. Thanks to its adaptative library of 20 radionuclides, it can also be used for civil and medical applications.

The system provides different measurement modes for the measurement and detection of Alpha & Beta radiations. Its innovative probes are equipped with a proximity sensor and embedded alarm. A clear and easy-to-check bar graph is displayed on the screen in order to facilitate monitoring operations.

The SaphyRAD C has data storage on a removable SD Card and 45 hours of autonomy thanks to its rechargeable Li-ion battery.

The SaphyRAD C is compliant with all european standards especially in terms of compatibility with electromagnetic fields. It is also compliant with the international standard IEC60325.

AB31 / AB100, A/B100, AB170, A/B170, A/BG170, A32

For clearance control
