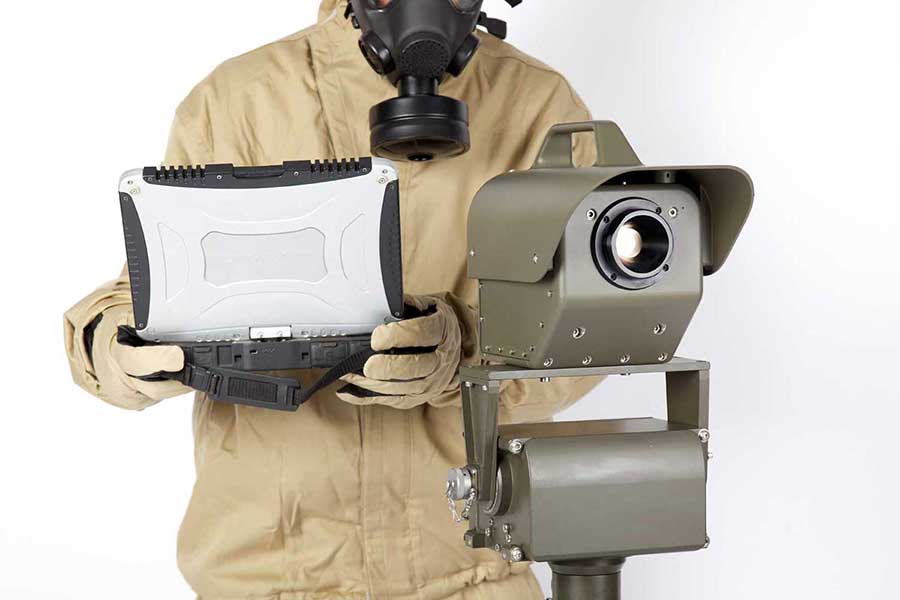

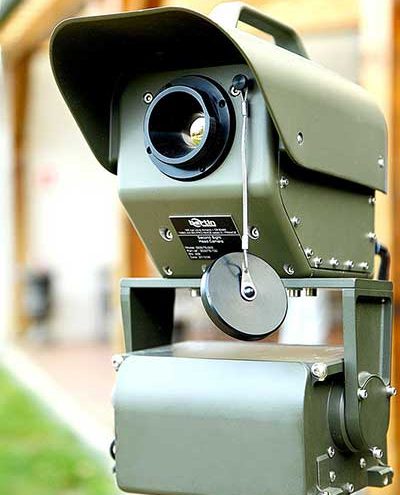

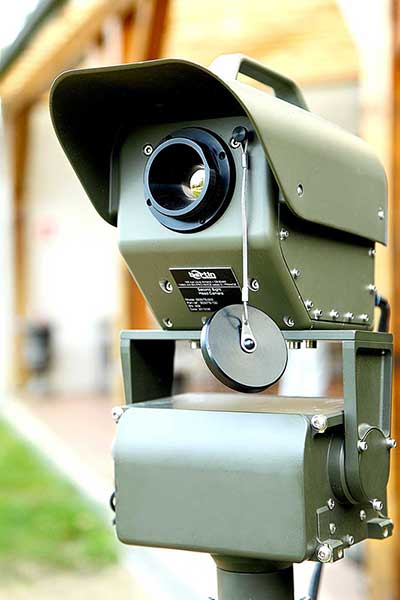

Technology:

Infrared spectral imaging

Catalogue number:

003075-003

Detection range and Field of View:

Detection up to 1000m with 60×48° FOV
Detection up to 2000m with 30×24° FOV
Detection up to 5000m with 12×9° FOV

Detected gas:

Gas X: detect all gas clouds that absorb in band III infrared
Most CWA and TIC

Time to alarm:

in approx. 10 seconds

Scan mode vertical angle:

180° x 15° in less than 3 minutes

Dimensions & Weight:

Head camera: 35 x 19 x 24 cm 5.2 kg
Processing unit: 26 x 19 x 15 cm 5 kg

Temperature:

– 20°C to 45°C (operation)
– 20°C to 70°C (storage)

Ruggedized:

Mil Std 810-G

Ingress protection:

IP65

Wide field of view:

Early warning by real-time detection of the chemical gas cloud
The widest monitored field of view to enable source localization and cloud movement

High detection capabilities:

Identification of CWA & TIC in the database
Detection of unknown, impure or mixed gas with gas X feature
Source point and contamination area indicated
Alarm video available for replay and rapid sharing

Easy deployment:

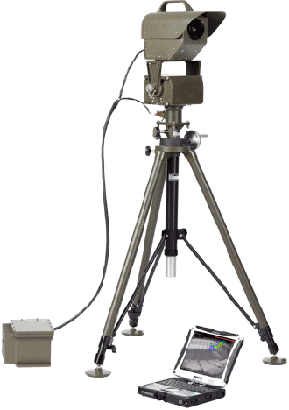

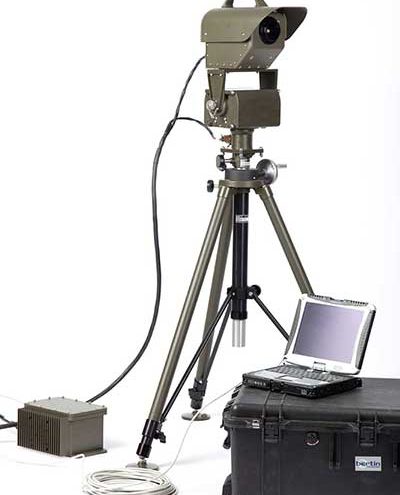

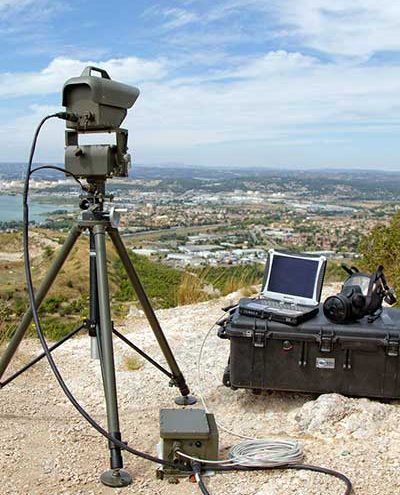

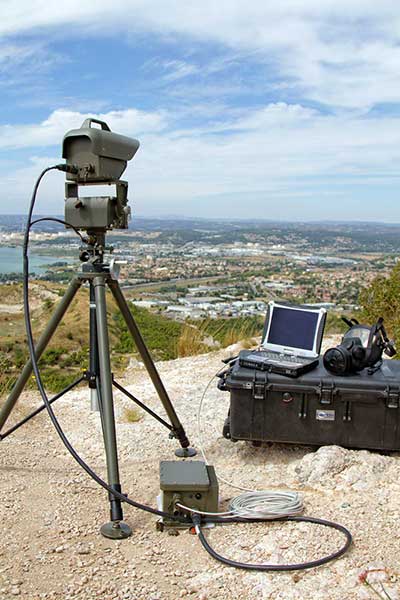

Light and nomadic for one-off surveillance
24/7 critical infrastructure
Custom mounting for CBRN reconnaissance vehicles

Each gas has its own absorption spectrum and presents typical absorption peaks in infra-red bands II (3 to 5 µm MWIR) and bands III (8 to 14 µm LWIR). Second Sight operates in band III, in order to use the particular peaks to enable the identification of a vast majority of gases. The Second Sight measurement principle uses the scene background as an infra-red source, and image processing algorithms to highlight the presence of a gas cloud in the line of sight.

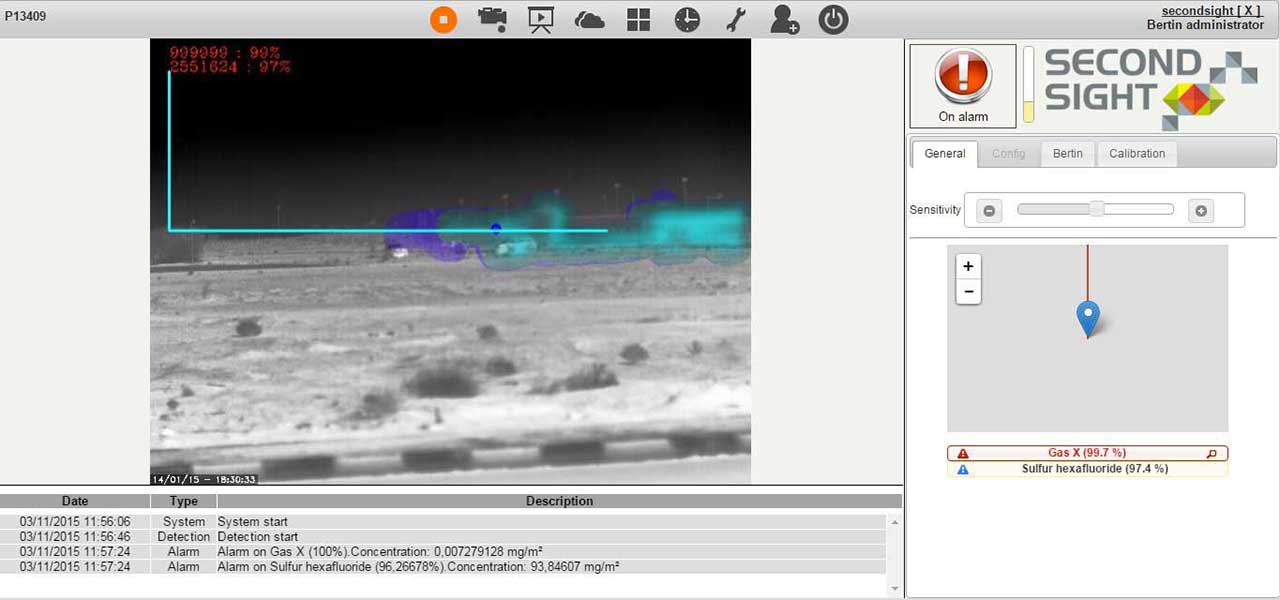

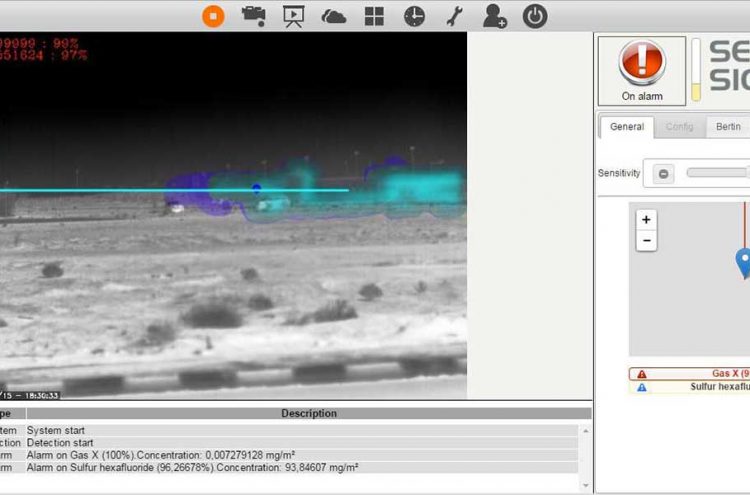

In the event of an alarm, the presence of a gas cloud is displayed as an overlay on the infrared image. The identification and estimated path length concentration are given in the top left corner and the gas is underlined in red in the gas list.

The latest version of Second Sight is becoming a universal gas detector with its new detection algorithm Gas X, an unknown gas detection capability that enables the detection of any gas cloud modifying the infrared signature in band III of the observed scene, even if the gas is not listed in the system’s database.

Vehicle mounting

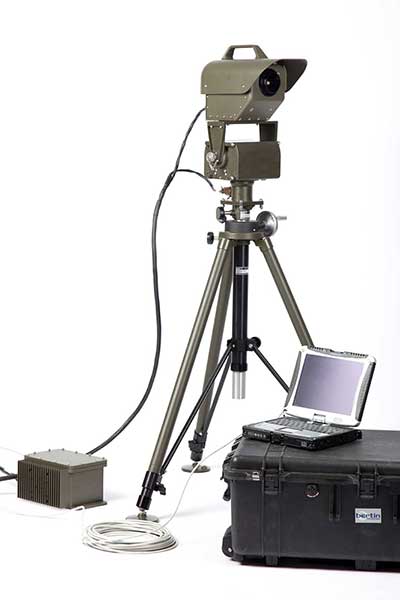

The vehicle mounting is a mechanical interface to easily attach the head camera with its pan & tilt on the roof of any vehicle.

GPS option

The GPS coordinates of the Second Sight is given in the Graphic User Interface. It highlights the area of surveillance on a map. Integrated with a compass, it also gives the direction of the Second Sight when used with Pan & Tilt.

Battery

Lightweight and compact battery designed with lithium-ion technology to offer 5.5 hours of autonomy

12° objective

Specific lens for surveillance up to 5km. This lens is compatible with any Second Sight and can be replaced by the user
